Mobile & Water Pump

General

Siam Telemach has a long-standing experience and expertise in designing and producing pumps for professionals in agriculture and irrigation works, municipal works, industrial works and constructions

Our pumps can meet the vary requirements, as we ensure that the flow rate is up to 60,000 liters per minute (3,600 m3/h) and the head pressure is up to 20 meters.

Types

Mixed Flow

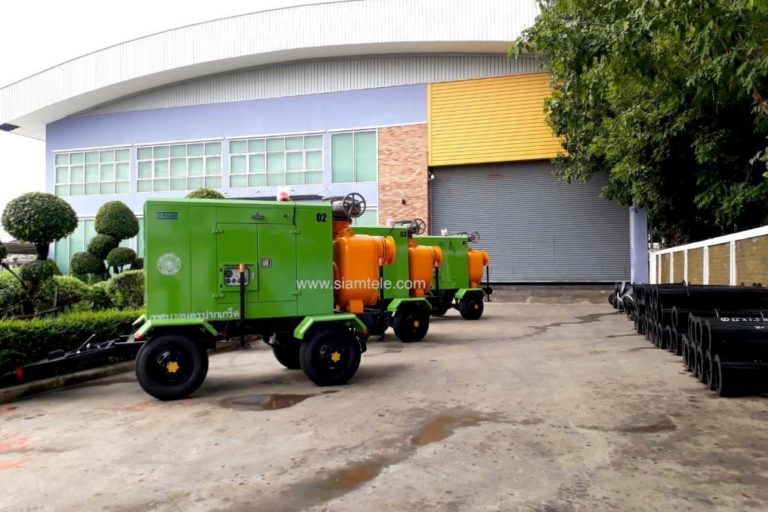

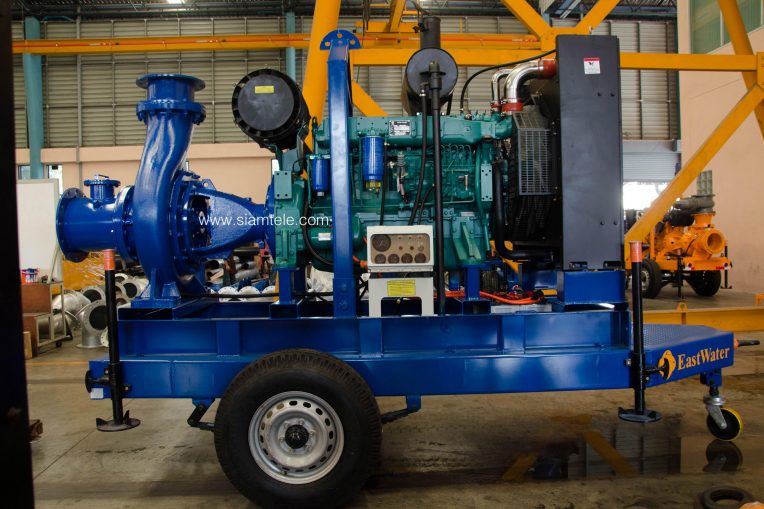

Horizontal centrifugal mixed-flow pump with exhaust priming, diesel engine driven, discharge and suction size of 6-20 inches, mounted on the pneumatic tire trailer with fully completed accessories.

The flow rate is up to 60,000 liters per minute (3,600 m3/h) and the head pressure is up to 30 meters.
Self Priming

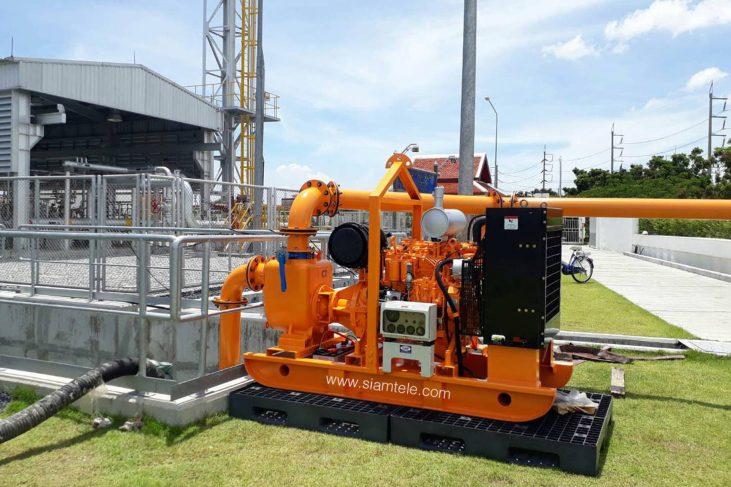

Horizontal centrifugal self-priming pump, diesel engine driven, discharge and suction size of 6-12 inches, mounted on the pneumatic tire trailer with fully completed accessories.

The flow rate is up to 20,000 liters per minute (1,200 m3/h) and the head pressure is up to 17 meters.

Product Features

  • Pump
  • Engine
  • Coupling and Assembly
  • Pump type: Horizontal centrifugal mixed-flow pump (single stage)
  • Pump, manufactured in Thailand, ISO 9001:2008 certified factory.
  • Flanged pump is DIN PN10 standard.
  • Pump capacity range is 9,000 to 60,000 liters per minute at total pressure range 10 to 30
  • meters, at 1,800-rpm engine speed.
  • Pump performance is at 70% plus efficiency.
  • The exhaust priming system of the engine is not more than 1 minute per meter at
  • maximum 3 meter depth.
  • Pump suction and discharge pipes must not be smaller than 12 inches.

Pump Materials:

Casing: Cast Iron Class DIN GG-25
Impeller: Cast Iron
Pump Shaft: Stainless Steel (or Stainless Steel AISI420)
Sealing: Packing Seal
Bearing: Ball Bearing
Lubrication System: Oil-bath-lubricated
  • Deutz diesel engine, 4 strokes, direct injection, with turbocharger.
  • Engine is approved by European Union Countries, United State of America, United Kingdom, Japan and Thailand.
  • Engine is certified to EPA Tier 2 emission control standard or EURO stage 2 or better.
  • Water-cooled radiator with the cooling fan blowing out of the engine.
  • Continuous rating power up to 24 hours per day, relative to the pump size.
  • 12 or 24 volt electric start with automatic battery charging while battery is in use.
  • Fuel tank, installed on a pedestal base with oil level scale in CKD, either 60, 80 or 100 liters of capacity, for up to 10 hours continuous use.
  • Instrument panel includes Tachometer, Temperature Gauge, Oil Pressure Gauge, Water, Temperature Gauge, Voltmeter, Hour Meter, with day and night usage.
  • For engine protection, there is automatic engine shut down in case of: High water temperature gauge • Engine over speed • Low oil pressure
  • Engine and water pump units are direct flexible close coupling in SAE3 or SAE4 standard, with non-misalignment and direct transmission to the fly wheel torsion aluminum alloy disc coupling.
  • Pump, engine and other equipment are mounted on the strong chassis from fabricated SS410 steel, thickness not less than 6 mm.
  • There is A-bail steel joined to the center of mass (CM), strengthening the pump set from the top.
  • Two pneumatic rear wheels of 7.00-16 or 6.00-14 inches size with spring absorbers, and rear adjustable stabiliser, and a foldable urethane front wheel, support the trailer.
  • The trailer is painted with epoxy color as manufacturer standard.
  • All pumps are tested to verify performance.
