Fire Fighting Pump System use in manufactory, skyscraper, condominium and hospital. To meet the law of construction, fire pump is necessary for all types of extra large area (from 10,000 sq.m. usage area) industry. More than 30 years in fire fighting field, Siam Telemach is trusted by major industrial such as TOYOTA, ISUZU, SUZUKI, BRIDGESTONE in fire fighting system.

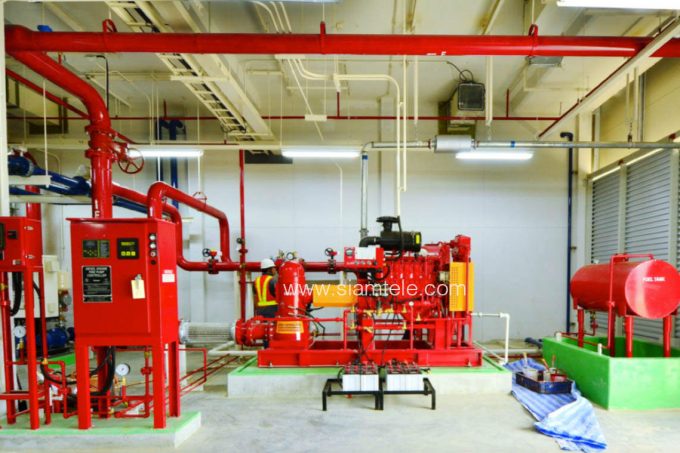

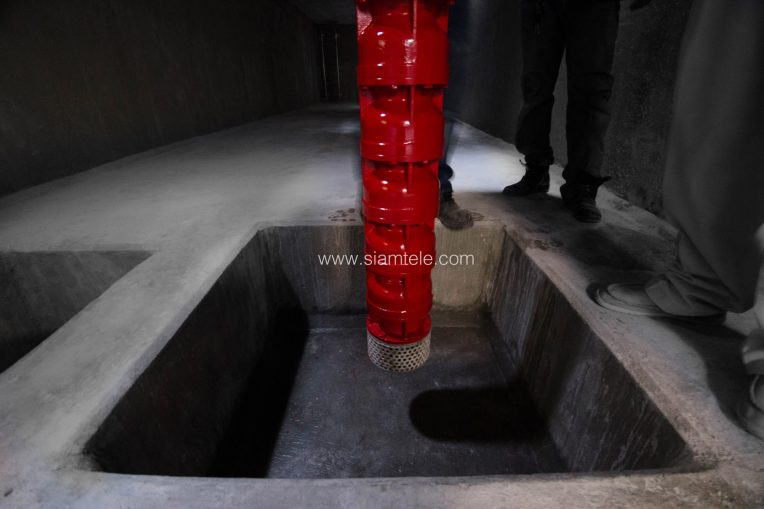

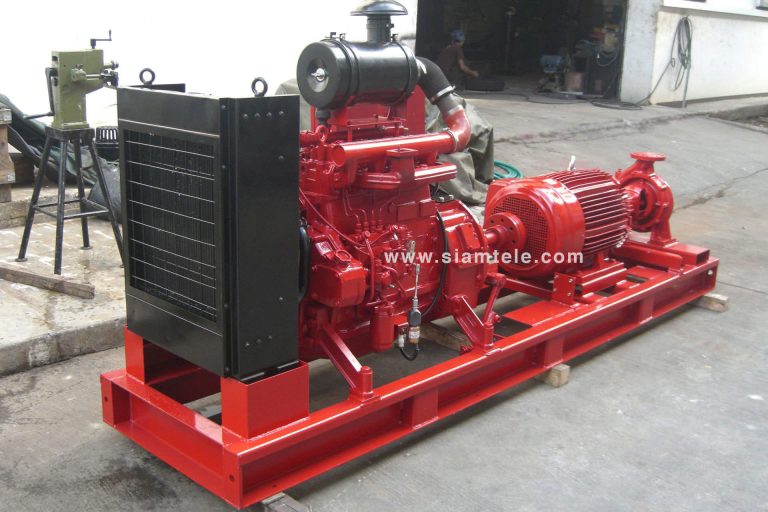

The main pump provides water flow at a higher pressure to the sprinkler system riser and hose standpipes. Siam Telemach has vast experience in firefighting sector and is able to propose a broad range of standard solutions i.e. NFPA-20, UL, FM. Fire pumps can be powered by electric motor, diesel engine or hybrid system. The pump intake is either connected to the public underground water supply piping, or a static water source (e.g., tank, reservoir, lake).Types of pumps used for fire service include: Horizontal Split Case Pumps, Vertical Turbine Pumps, and End Suction.
A small pump connected to a fire sprinkle system and is intended to maintain pressure in a fire protection piping system to an artificially high level so that the operation of a single fire sprinkler will cause a pressure drop which will be sensed by the fire pump automatic controller, causing the fire pump to start. The jockey pump is essentially a portion of the fire pump's control system. In addition we produce a mobile fire station with high pressure engine-driven pump that is used in those environments without fixed firefighting systems.
Automatic Control System
Siam Telemach offers control system under cover of NFPA-20, FM APPROVE, UL, and ISO9001 standard for fire pump system controller with several ancillary devices - such as outdoor type canopy, sound proof, etc. in “MAZOR” brand model DFC-1, DFC-211, DMFC, MFC-2, M-15, DOL-2 and “FIRETROL” brand model FTA-500, FTA-1100.
